This is an article demonstrating construction
of a simple low-pressure organ tremolo unit. The basic component is an
Organ Supply Industries pedal pallet assembly. We begin by constructing
a simple four-sided box, with a bottom, around the pipe valve unit. The

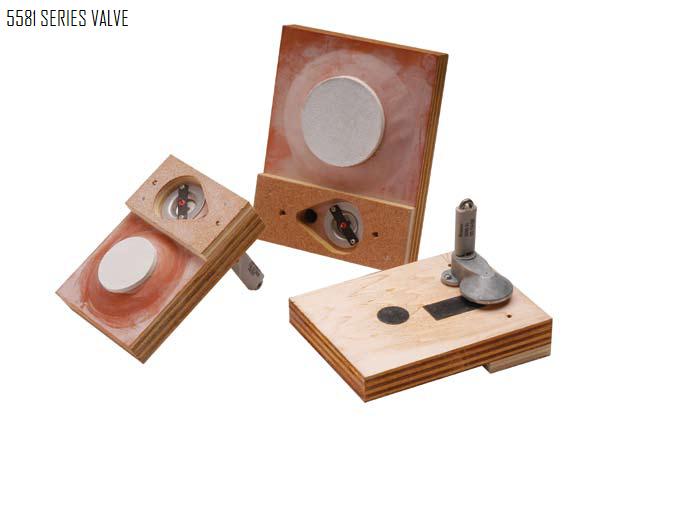

5581 series valve is sold in three sizes. We selected the 5581.3 which
is a 3" diameter valve.

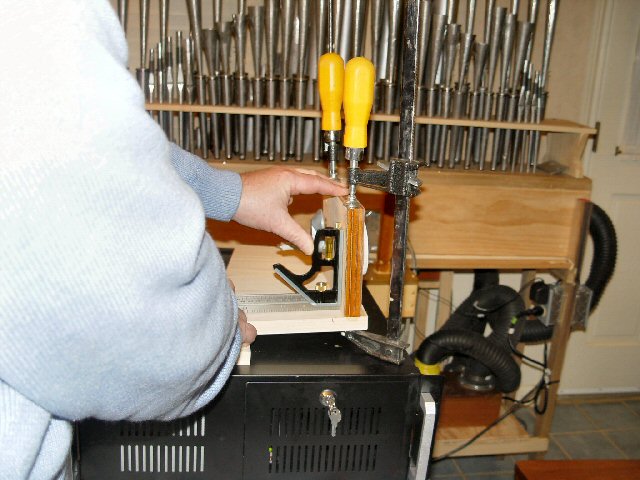

The lumber selected for the enclosure is 1x8
Poplar, selected for its grain quality, strength and uniformity.

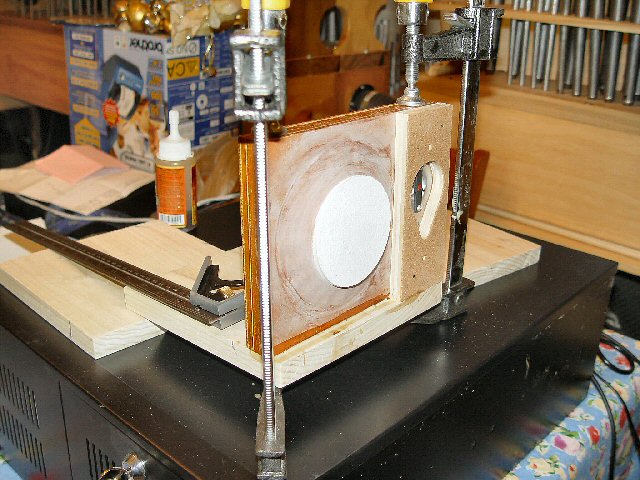

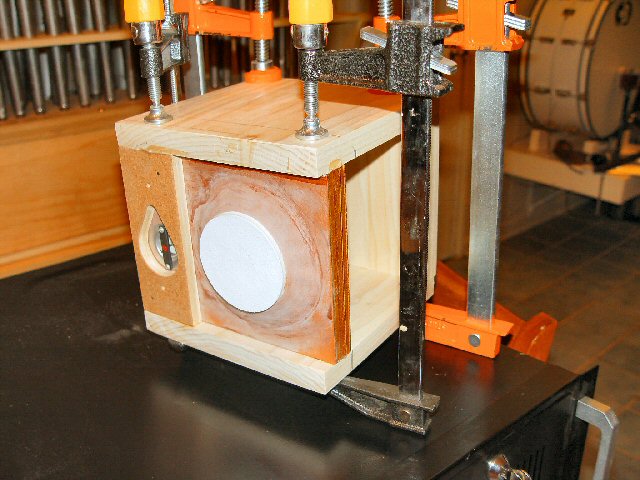

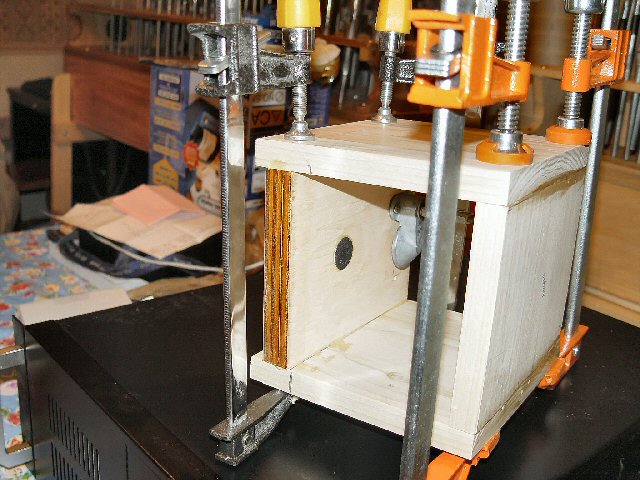

WHOOPS! What's wrong with this picture? If
you noticed that there is no way for the air to reach the pallet and valve,
you are correct! We did have a design flaw in the original concept, but
we caught it before the unit was fully assembled. Rather then re-cut the
box. we decided to add on to the box in the form of a manifold attached
to one end. The photo below shows how the manifold was constructed. The

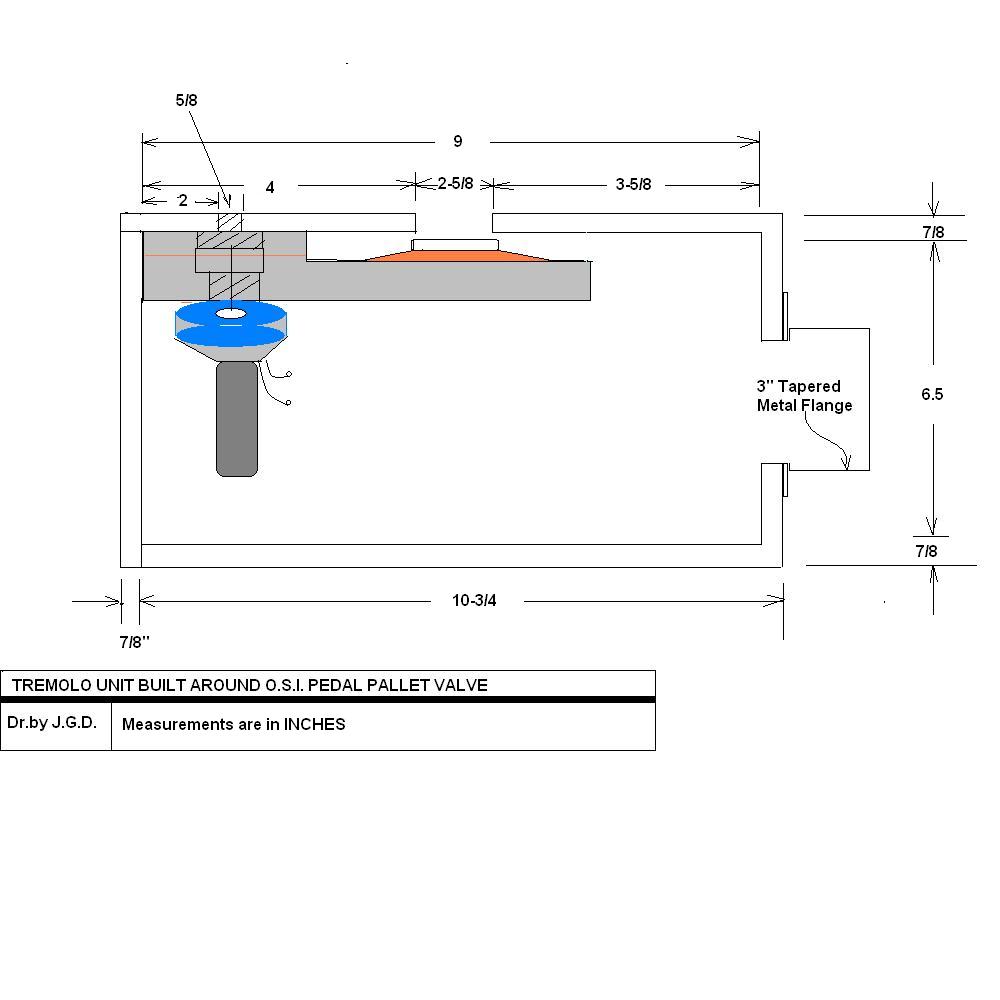

project plans will, however, take this into account, and the sides of
the box will be cut to allow room for the air manifold.

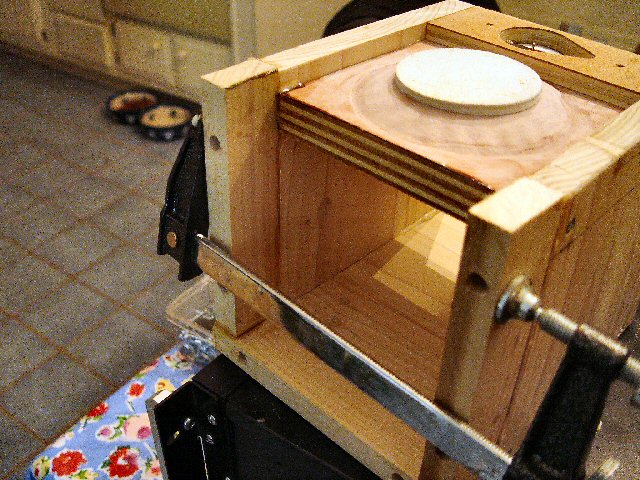

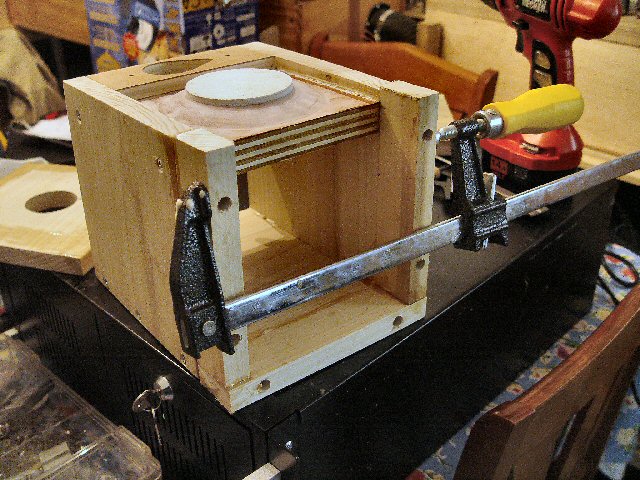

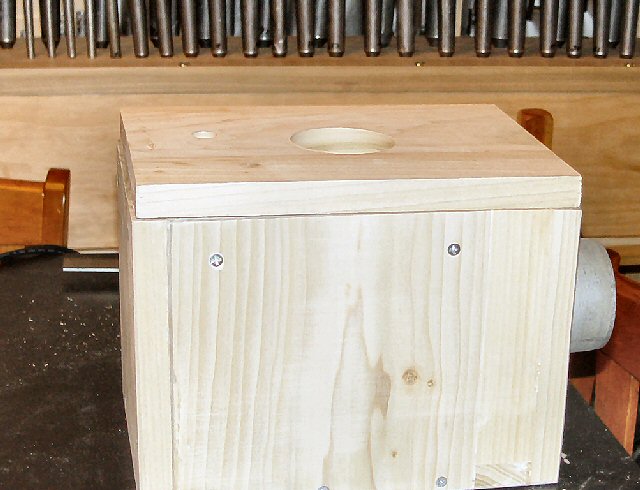

Here is the add-on manifold to allow tremmed
air to reach the valve.

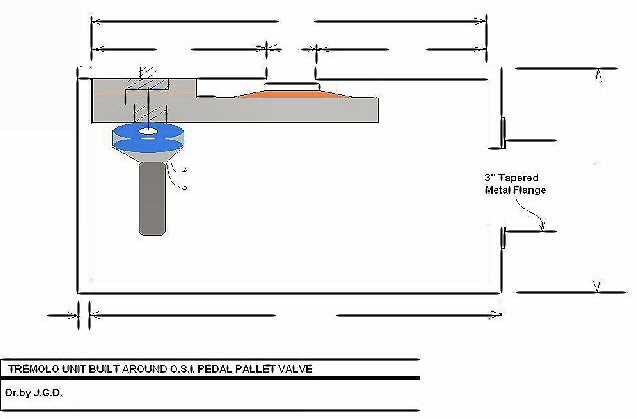

Click on the image below to see an enlarged
version of the picture.

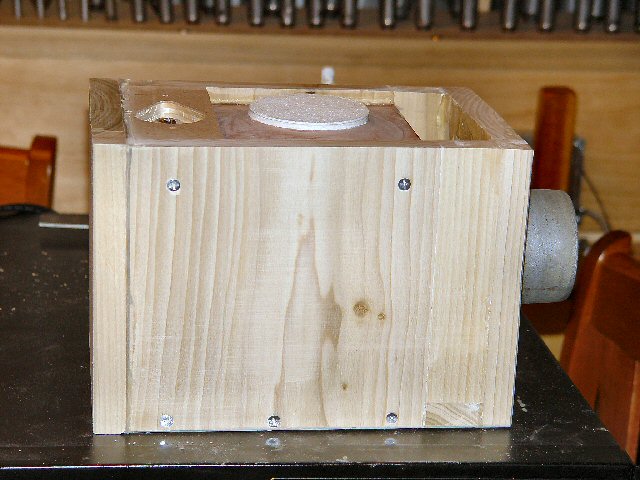

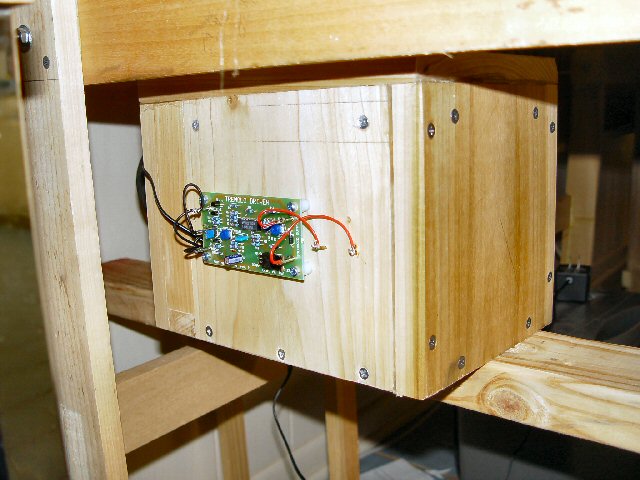

FINISHED UNIT, WITH PULSER BOARD INSTALLED,
IS NEATLY MOUNTED UNDER PIPE CHEST
